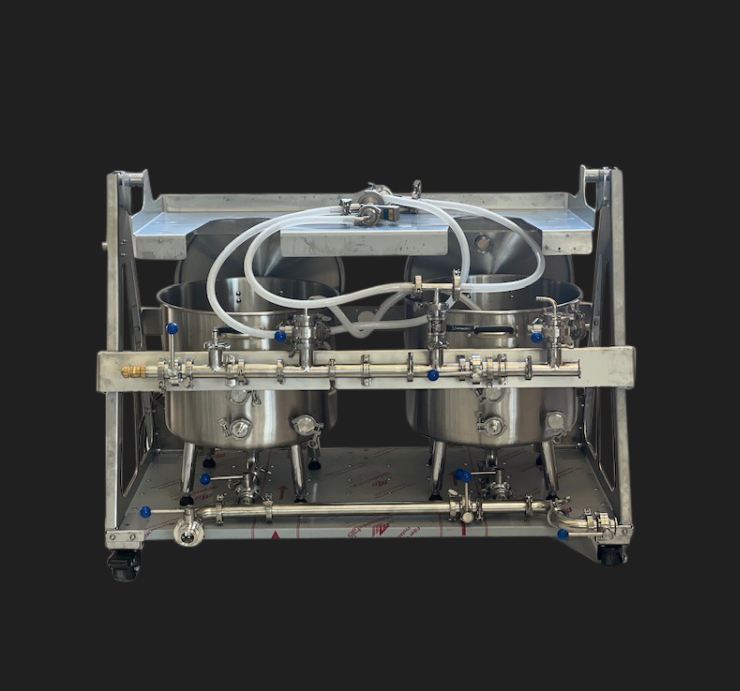

NANO Manual Keg Washer: Now Includes 2 X 80L Dished Vessels

Complete double station keg washer excluding temperature controllers (2 X Inkbird 308T’s can be used) and a CIP Pump which is sold separately but integrated into the plumbing for free if purchased. Alternatively, you may already have those items.

Flexible dual use product i.e CIP system and keg washer capability with the purchase of a centrifugal pump as per below.

Features:

• All in one dual 80L 304SS NANO-X Dished Brew Kettles. First kettle for caustic and second kettle for sanitizer.
• Both 80L vessels are bottom dished for easy removal of chemical residue
• Cold water hose connection port on manifold to rinse kegs and also fill the keg washers 80L tanks and flush keg washer plumbing
• CO2 Connection port for keg purging post cleaning
• 304SS Construction with top plate tipping function for ease of access to the 80L NANO-X Dished Brew Kettles for cleaning and filling
• 2 X 2200w Elements (10A or 2.2KW 240v single phase). Both elements running together total 20amp or 4.4KW
• 2 X A-Type Keg Coupler with 1.5″ TC fittings are included (To change to D-Type please select from the drop-down menu)
• Complete Tri Clover liquid manifold
• Reinforced silicon hose supplied from water tank fill port
• Reinforced silicon hose supplied from re-circulation port to the two coupler fittings
• Reinforced silicon hose supplied from keg coupler fitting to 80L tank fluid return port
• 1″ Suction and delivery hose linking top and bottom keg washer manifold

Sold Separately

• 0.75kw 230-v to 240v single phase Pumps (sold separately) Free integration/plumbing into keg washer if purchased
• 1.1kw 230-v to 240v single phase Pumps (sold separately) Free integration/plumbing into keg washer if purchased
• All in one double station Keg Washer with the ability to clean 19L kegs with the optional 19l keg washer adapter (sold separately)

Dimensions:

• 110cm Height (including wheels)
• 80cm Wide
• 142cm Length
