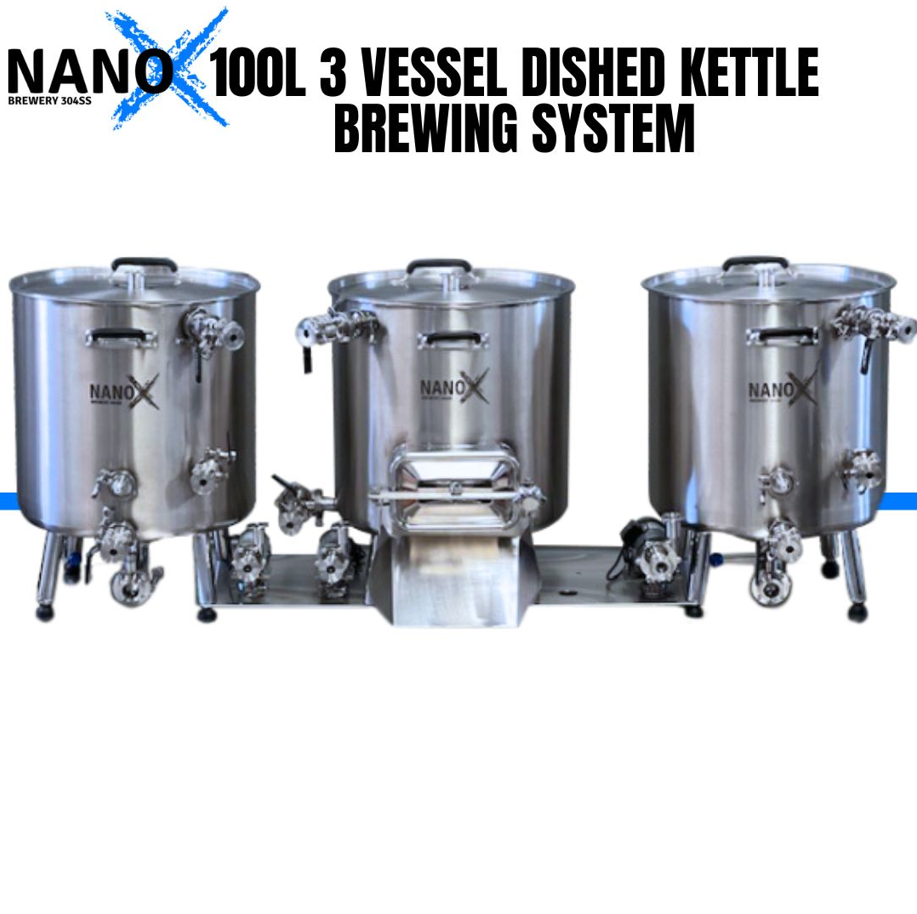

NANO-X 100L Dished Vessel 3V

The new dished 3V for the ultimate in double batch capability, ease of cleaning, storing and grain removal. You simply cannot bet a 3v for volume output and we have designed this puppy to be a double batch beast.

Batch 1 Process: Batch 1 is done using traditional 3v brewing. HLT (Left) heats water for the system and transfers to Mash Tun (middle). HLT transfers water on top of Mash Tun when Mashing is complete, as this occurs, liquid / wort is transferred from the Mash Tun to the Boiler for the boiling activities are completed before wort chilling and transfer occurs.

Batch 2 Process: Batch two is where our design makes batch 2 so much faster, as we have designed the system in way where you can start Mashing instantly without having to wait for the Boiling process to reach 30 minutes before it is completed. Batch 2 on this system is brewed using the figure of 8 2v brewing process. So, we have essentially incorporated a 2v design into a 3v system.

If your interested in this system please feel free to contact us for more information on the above usage techniques if you are not sure.

What You Get:

• 100L NANO-X Dished Brew Kettle
• 100L NANO-X Dished Mash Tun
• 100L NANO-X Dished Boiler Kettle
• 2 X 25w Magnetic Drive Pumps
• 1 X 65w Magnetic Drive Pump
• 2 X 304SS Vessel Joiner Plates & 3 X 1.5″ TC Bulkheads
• 3 X 1.5″ TC Pump Plates to convert all pumps to TC Mounting for easy removal when cleaning
• All TC Valves, Clamps and Seals (Clamp & Seals and hose fittings for plumbing)
• 5m of Clearview Silicon Hose
• Racking port with Racking Cane
• 304SS 1.5m Thick Hinged False Bottom in Mash Tun
• 8 X Adjustable Wheel and Leveling Feet supplied
• 10 X Butterfly Hose Clamps (securing silicon hose to barbs)

Sold Separately:

• Your choice of controller / s for the system
• Choice of Elements (2200w, 2400w and 3200w Low Density or Super Low Density)
• Clamp & Seals and hose fittings for plumbing
• HERMS Install Kit For HLT. We are happy to install the HERMS coil into your HLT if you purchase the HERMS kit.
• 2″ RIMS System
• TC Flow Meter to easliy control recirculation. If you purchase 2 you can control sparge flow speed and transfer from Mash Tun to Boiler Kettle speed and equalise the two for set and forget sparging.

Dimensions:

• 125cm Length
• 80cm Height
• 80cm Depth
