What’s in the box?

• 200L NANO-X Dished Brew Kettle
• 200L NANO-X Dished Mash Tun
• 2 X 65w Magnetic Drive Pumps
• 304SS Vessel Joiner Plate with 2 X 1.5″ TC Bulkheads
• 2 X 1.5″ TC Pump Plates to convert pump to TC Mounting for easy removal when cleaning
• All TC Valves, Clamps and Seals (Clamp & Seals and hose fittings for plumbing)
• 3m of Clearview Silicon Hose
• Racking port with Racking Cane in the HLT/BK
• 304SS 1.5m Thick hinged and slitted False Bottom in the Mash Tun
• 8 X Adjustable Wheels and Leveling Feet supplied
• 10 X Butterfly Hose Clamps (securing silicon hose to barbs)
• 1 X 2″ Tri Clover 5.5kw/25amp/5500w 230 v to 240v single phase elements super low density element (6w per square cm)
• 1 X 2″ Tri Clover 3.2kw/15amp/3200w 230 v to 240v single phase elements super low density element (6w per square cm)
• 1 X NANO Boss 25amp 90v to 240v single phase controller. That’s right our controller works right down to 90v
• 1 X NANO Boss 15amp/3.2kw/3200w 230v to 240v single phase relay module
• 2 X 1m 3/4″ Brewery suction and delivery hose

What is the total power to run the system?

• Total power required to run this system is 40amp single phase

Foot Print:

• 135cm Wide
• 145cm Height
• 115cm Depth

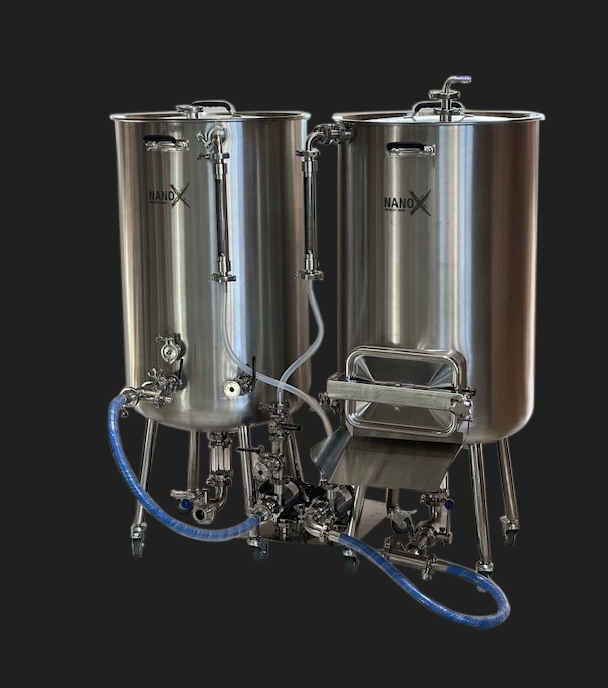

Welcome to the NANO-X 200L 2V brewing system, quickly becoming our top-selling model among the 2V systems. Its popularity stems from being less messy, easier to use, and capable of producing significantly more wort compared to a Single Vessel System. Additionally, it offers a highly cost-effective solution for increasing wort production volumes.

The 2V brewing concept:

This highly cost-effective 200L 2V brewing system allows you to produce a single 170L batch of wort or a double batch of 340L in a single brew day. For single-batch brewing on our 2V system, we recommend the figure-of-eight brewing technique, where the Hot Liquor Tank (HLT) also serves as the Boiler Kettle (BK) to complete a batch. Double batching on a 2V system is straight forward but requires the use of an efficient instant hot water service (which everyone has) to function as the HLT, as explained below.

Single Batch Brewing:

To produce a single batch on the NANO-X 2V, we use the figure-of-eight brewing technique. This method is easy to master and involves transferring wort from the Mash Tun (right vessel) to the HLT/BK (left vessel) and simultaneously returning it to the Mash Tun from the HLT/BK for a 60-minute mashing period. During this process, the total water for the batch is used, and the mash water and sparge water mix until the target gravity and wort clarity are achieved.

Brewing starts by heating all the water in the HLT/BK. Strike water is then transferred to the Mash Tun, and the HLT may need a small top-up to reach the required total water target. After topping up the HLT, add the grain to the Mash Tun and mash in. Once satisfied with your mash and testing, start the figure-of-eight re-circulation process.

This technique is simple, less messy, and hassle-free. The mash temperature is maintained by the fluid returning from the HLT/BK to the Mash Tun, as the elements are in the HLT/BK. It’s crucial to ensure equal fluid transfer between the vessels to maintain their starting volumes, avoiding overflow or dry elements. To facilitate this, CP has equipped the system with two flow meters, one on the HLT/BK and one on the Mash Tun, allowing the brewer to set the exact flow rate into each vessel and making kettle volume maintenance foolproof.

Double Batch Brewing:

Double batching on the 200L NANO-X 2V is straight forward and a significant time-saver compared to double batching on a single vessel system. After completing the first batch and transferring all the liquid from the Mash Tun to the HLT/BK, set the controllers to boiling temperature for the first batch. Then, remove the grain from the Mash Tun, replace it with strike water at temperature from an instant hot water service, and begin the mashing-in process.

Once you have mashed in, start the re-circulation of fluid in the Mash Tun, where the fluid comes out of the Mash Tun, into the pump, and back into the top of the Mash Tun for a 60-minute period if needed. After the mash period is complete, set the hot water service to 75 degrees and use it to sparge according to the required sparge volume. As you sparge, transfer the wort to the HLT/BK, ensuring your timing allows the HLT/BK to be ready to receive the second batch for boiling.

An instant hot water service is essential for this process, although a cost-effective hot water liquor tank can also be used. To maintain mash temperature, you can add an additional element (3200w/15amp or 5500w/25amp, sold separately) under the Mash Tun’s false bottom, where provisions have been made for it
