Sonflow Plate Chiller Pro Fit Out Fittings

Please Note: This listing doea not include the Sonflow Plate Chiller as shown in some images.

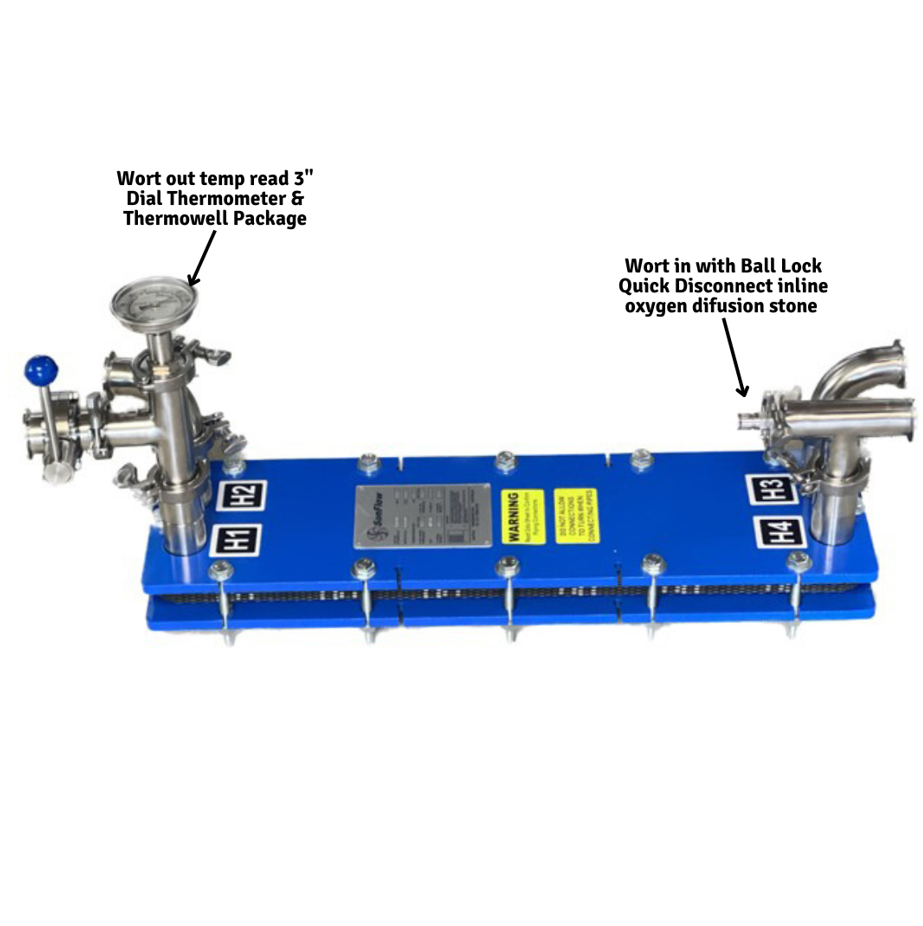

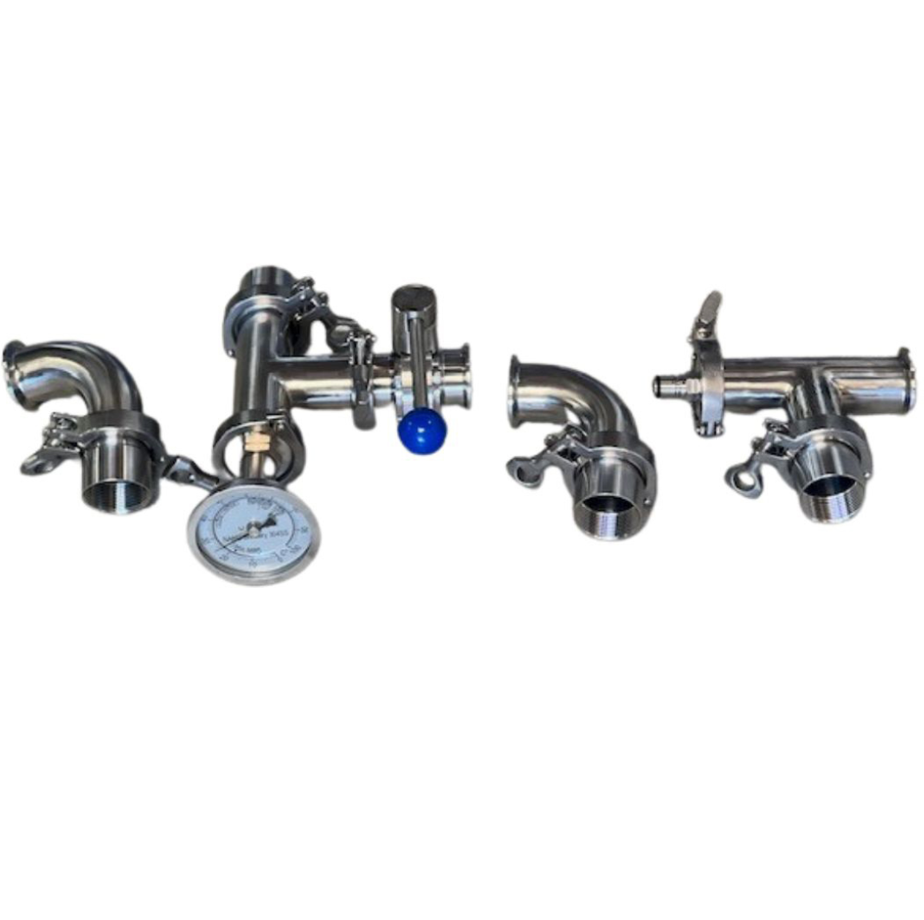

Complete pro fitting pack for the sonflow chiller. Water in and out 1.5″ TC connection for ease of use. Additionally, we have added 2 X 1.5″ tee set ups to enable inline oxygenation diffussion of wort, where wort enters the chiller, and temperature read where the wort exits the chiller.

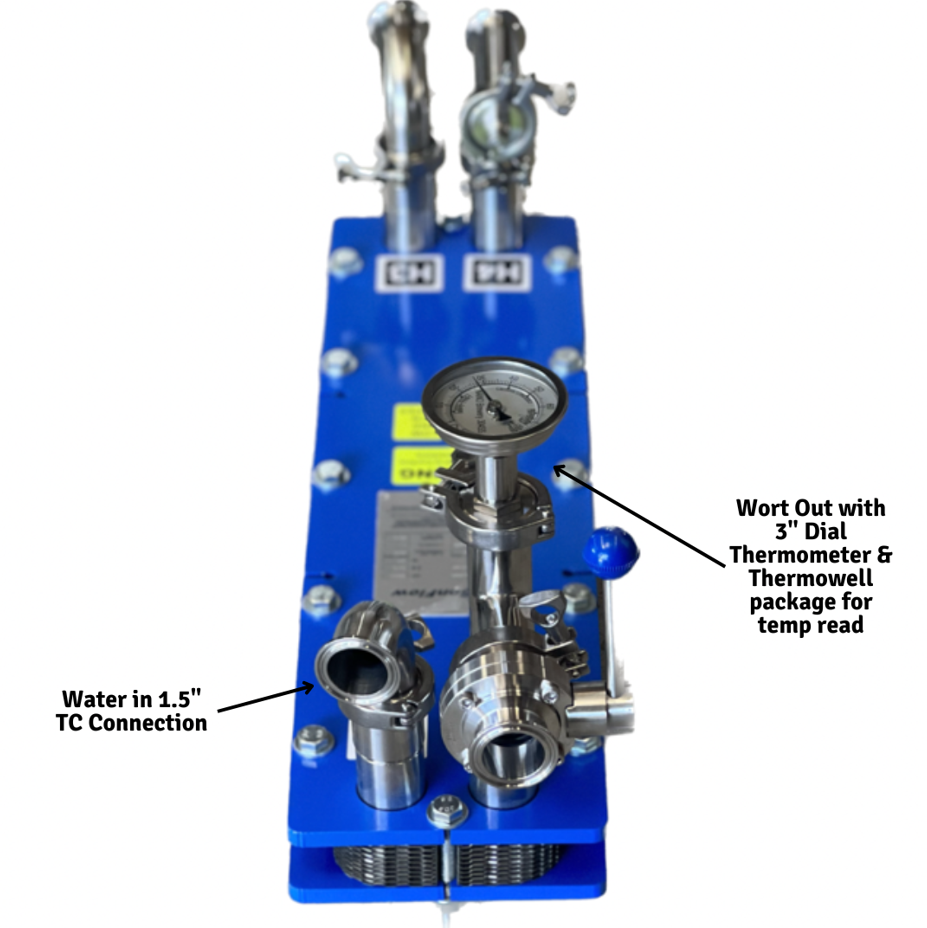

Water In:

• 1.5″ Tri Clover connection for easy clamp on water connection

Water Out:

• 1.5″ Tri Clover connection for easy clamp on water connection

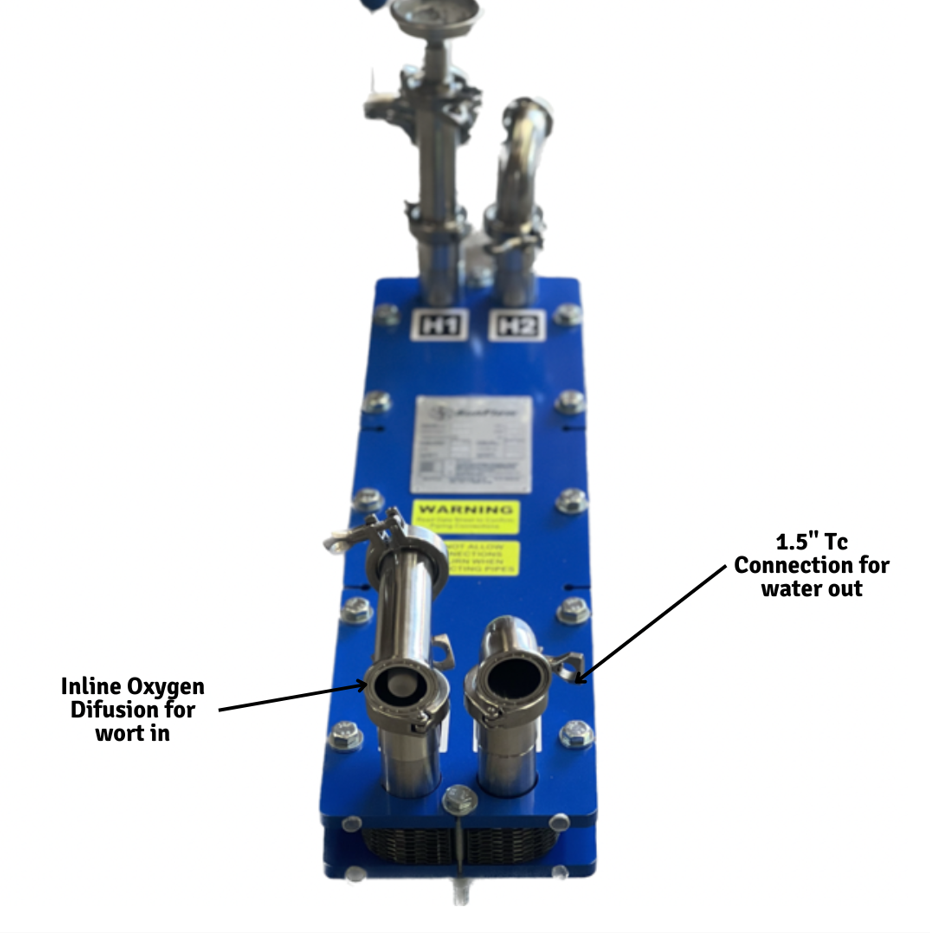

Wort In:

• 1.5″ Tee junction set up for wort in and inline oxygen diffussion assembly.
• Easy oxygen connection with our large oxygen diffussion stone with quick disconnect ball lock connection.
• Easy 1.5″ Tri Clamp connection for oxygen diffussion stone
• Wort in 1.5″ Tri Clover connection.  Simply clamp your brewery hose to the wort in

Wort Out:

• 1.5″ Tee junction set up for wort out enabling temperature read out of the chiller
• 100% sanatary 1.5″ Butterfly Valve for max output
• 3″ SS Dial Thermometer temperature read inserted into a thermowell. Dial thermometer can be removed and the probe of a digital thermometer can be inserted into the supplied thermowell
